| Voltage: | AC220 | Product Name: | WECO Light Curtain, WECO Door Sensor |
|---|---|---|---|
| Feature: | 6.6mm Thickness Slim | Business Tyep: | Manufaturer And Trading |
| Scanning Beams: | 154 Beams | Brand: | WECO |
| High Light: | light curtain safety system,light curtains machine guarding |
||

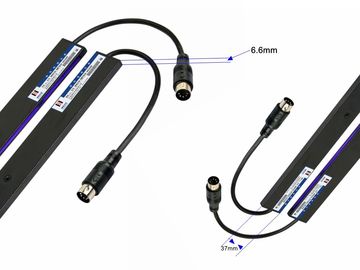

Slim Model WECO Elevator Door Sensor 154 Beams 6.6mm Thickness AC220V
Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. WECO-917SIX door sensor is a new developed model with only 6.6mm thickness. And WECO be the unique company who has 6.6mm thickness model door sensor. So if your lift is with narrow gap between cabin and door, WECO-917/ 957SIX elevator door sensor will be your best choice.
In the meanwhile, this type also suitable to work with our parted 3D sensor to achieve 3D protection.
Application
All type elevator
Main Market
global
Technical Features
| Technical Parameter | 917SIX | 957SIX |
| Number of Infra Red Diodes | 32 Diodes | |
| Response Time | 61ms relay output | |
| 37ms transistor output | ||
| Scanning Beams | 154-94 Beams | |
| Detecting Height | 20-1841mm | |
| Redundary Function | YES | |
| Operation Temperature | -20℃-+65℃ | |
| Detecting Range | 0-4m | |
| Light Immunity | 100000Lux | Sunlightproof |
| Protection Level | IP54 | |
| EMC | ||
| EN12015 | General Circuit Level | |
| EN12016 | ||
| Voice Reminder | after continuous detection for 15s, buzzer ON. | |
| LED Interpretation | Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction. | |
| Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked. | ||
Size:
Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)
What's More?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have two automatic production lines to ensure good quality and fast delivery time.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- This model is only sold to overseas market to gurantee original WECO manufacturing.
