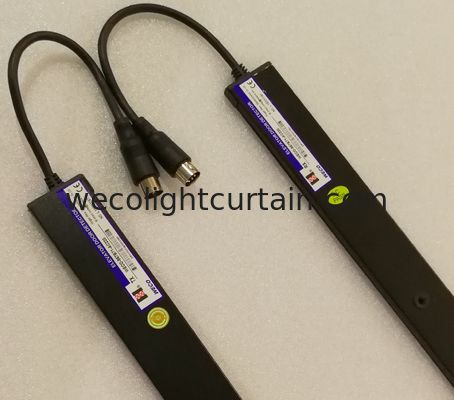

154 Beams WECO Light Curtains Machine Guarding Central And Side Opening

154 Beams WECO Light Curtains Machine Guarding Central And Side Opening
154 Beams WECO Light Curtains Machine Guarding Central And Side Opening 154 Beams WECO Light Curtains Machine Guarding Central And Side Opening

Large Image :  154 Beams WECO Light Curtains Machine Guarding Central And Side Opening

Product Details:

Place of Origin: CHINA
Brand Name: WECO
Certification: CE CSA CCC
Model Number: WECO-917 / 957B

Payment & Shipping Terms:

Minimum Order Quantity: 10SETS
Price: Negotiable
Packaging Details: 5sets in a bundles, pallet avaliable
Delivery Time: 5-8 Workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1400000SETS/Year
Detailed Product Description
Usage: Johnsonlift, Krupp Voltage: AC220V, AC110V, DC24V
Feature: NV-917B Catagory: Elevator Spare Parts, Light Curtain
Dimension: 2000* 38* 10mm Brand: WECO
High Light:

light curtain safety system

,

safety light barrier sensor

154 Beams WECO Light Curtains Machine Guarding Central And Side Opening





Introduction


WECO lift door sensor is adopting infrared light reflecting principle, when elevator doors are interrupted by obstructions, a signal will be sent out from door detectors, door operators will receive this signal and control the door opening. With advanced production management and strict quality inspection, WECO door detector has become the first brand in the world, providing reliable guarantee of passengers’ safety.

WECO-917B model Lift Door Sensor is the earliest model developed with WECO- 917A door sensor.  It only has 10mm thinkness and 38mm width, can be brass fiting on mounting holes. So that it has been widely used and ordered by clients both in China and overseas market.

Application
Cargo elevator, Passenager Elevator

Main clients
krup, Johnson lift, Maintenance Market, Iran, Vietnam.

Specification



Technical Features 917B6 917B7 957B6 957B7 957B8 957B9
 Number of infra red diodes 17diodes 32diodes 17diodes 32diodes 40diodes 48diodes
Response time relay output 45ms 61ms 45ms 61ms 69ms 77ms
transistor output 21ms 37ms 21ms 37ms 45ms  53ms
Scanning Bema 94~33 beams 154~94 beams 94~33 beams 154~94 beams 194~118 beams 234~142 beams
Detecting Height 20~1841mm
Detecting range 0~4m
Operating Temperature -20℃~+65℃
Light immunity 1000000Lux sunlightproof
Redundancy NO YES NO YES NO
Led Interpretation The yellow LED and red LED in receiver is on when blocked or in malfunction
The yellow LED in receiver is on and red LED in receiver off without blocking.


Dimension and Mounting holes



154 Beams WECO Light Curtains Machine Guarding Central And Side Opening 0


Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)

Shipping

1) By Express (3-7 working days), suitable for  Small Quantity.

2) By Sea (15-30 days), suitable for regular Mass Production.

3) By Air (4-5 days), from Airport to Airport, suitable for Urgent orders.




What WECO have?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.


--- We have a plenty of stock for this model safety photocell both in English and Chinese version.


--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..



--- Flexible and Untraceable payment terms.



--- Well-trained and disciplined packing team.
