Lift Spare Parts Light Curtain Sensor WECO 917H For Residence Elevator

Name: Lift Spare Parts Light Curtain Sensor WECO 917H For Residence Elevator
Brand: WECO
SKU: WECO-917 / 957H
Rating: 4.9 (112 reviews)

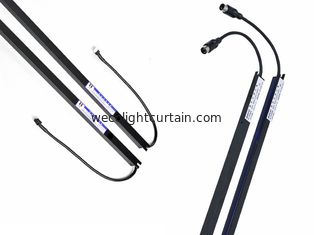

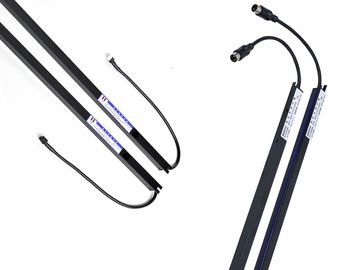

Large Image : Lift Spare Parts Light Curtain Sensor WECO 917H For Residence Elevator

Product Details:

Place of Origin:	CHINA
Brand Name:	WECO
Certification:	CE CCC
Model Number:	WECO-917 / 957H

Payment & Shipping Terms:

Minimum Order Quantity:	10SETS
Price:	Negotiable
Packaging Details:	5sets in a bundles, pallet avaliable
Delivery Time:	5-8 Workdays
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1400000SETS/Year

Contact Now

Detailed Product Description

Price:	Economic Model	Usage:	Residence Elevator
Voltage:	AC220V, AC110V, DC24V	Scaning Beams:	194 Beams
Product Name:	WECO Elevator Door Sensor	Delivery:	Courier, Air, Sea
High Light:	safety light guard , elevator door safety edge

Lift Spare Parts Light Curtain Sensor WECO 917H For Residence Elevator

WECO-917H light curtain is our company Ningbo WECO Optoelectronics CO., LTD. a new design model which is widely used on residence elevator.

The mainly special feature for 917H elevator light curtain is that there only two mounting holes on the light curtain, which makes the door sensor look more elegant. Currently Suzhou Dongnan elevator CO., is using this model on their lifts.And we exported to Australia and other countries also.

Whats more, WECO-917H light curtain also can work together with our parted 3D light curtain to achieve more safety protection level.

It is easier to be installed as there are only two mounting holes on top and bottom profile boday seperately.

Specification

Technical Features		917H8	957H8
Number of infra red diodes		40diodes	40diodes
Response time	relay output	69ms	69ms
	transistor output	45ms	45ms
Scanning Bema		194~18beams	194~118beams
Detecting Height		20~1841mm
Detecting range		0~4m
Operating Temperature		-20℃~+65℃
Light immunity		1000000Lux	sunlightproof
Redundancy		YES	NO
Led Interpretation		The yellow LED and red LED in receiver is on when blocked or in malfunction
		The yellow LED in receiver is on and red LED in receiver off without blocking.

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)

Whats more?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in elevator light curtain manufactuering and designing.
--- We have a plenty of stock for this model elevator light curtain both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
