Product Details:
Payment & Shipping Terms:
|
| Voltage: | AC220V, AC110V, DC24V | Scaning Beams: | 154 Beams |
|---|---|---|---|
| Catagory: | Elevator Spare Parts, Light Curtain | Feature: | NV-917G |
| Opening Mode: | Central Opening, Side Opening | Transportation: | Air, Sea |
| High Light: | safety light guard,elevator door safety edge |
||

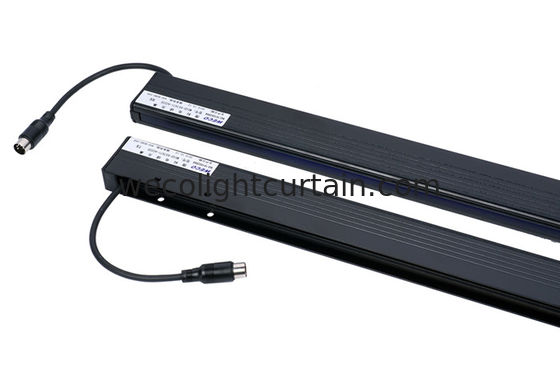

917G Elevator Light Curtain AC220 / DC24 Power Supply Control Photocell
Introductions
Adopting infrared light reflecting principle, when elevator doors are interrupted by obstructions, a signal will be sent out from door detectors, door operators will receive this signal and control the door opening. With advanced production management and strict quality inspection, WECO door detector has become the first brand in the world, providing reliable guarantee of passengers’ safety.
WECO-957G elevator door photocell is same as 917/ 957E, 917/ 957F door detector, all belong to 2- IN- 1 elevator door photocell. Which can better replace the safety edge to work on lift to be more effective to protect passenagers from being hurt.
Characteristic
Multi series production design.
Various outputs to match with different door operator’s demand.
Door detector height can be customized.
Replacement solution can be proved.
| Technical Features | 917G7 | 957G7 | |
| Number of infra red diodes | 32diodes | 32diodes | |
| Response time | relay output | 61ms | 61ms |
| transistor output | 37ms | 37ms | |
| Scanning Bema | 154~94beams | ||
| Detecting Height | 20~1841mm | ||
| Detecting range | 0~4m | ||
| Operating Temperature | -20℃~+65℃ | ||
| Light immunity | 1000000Lux | sunlightproof | |
| Redundancy | YES | YES | |
| Led Interpretation | The yellow LED and red LED in receiver is on when blocked or in malfunction | ||
| The yellow LED in receiver is on and red LED in receiver off without blocking. | |||
Dimension and Mounting holes
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
Competitive Advantages
1. More than20years experience in elevator light curtain production and designing.
2. Our products have been exported to more than 40 countries, like Germany, Greece, Italy, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Korea, Thailand, Indonesia, India and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Contact Person: Ailsa
