|Voltage:||AC220V, AC110V, DC24V||Catagory:||Elevator Spare Parts, Light Curtain|
|Lengtht:||Customized||Feature:||Waterproof, OTIS Use|
|Protection Level:||IP65||Advantage:||Flexible Mounting Holes|
elevator infrared door detector,
machine light guards

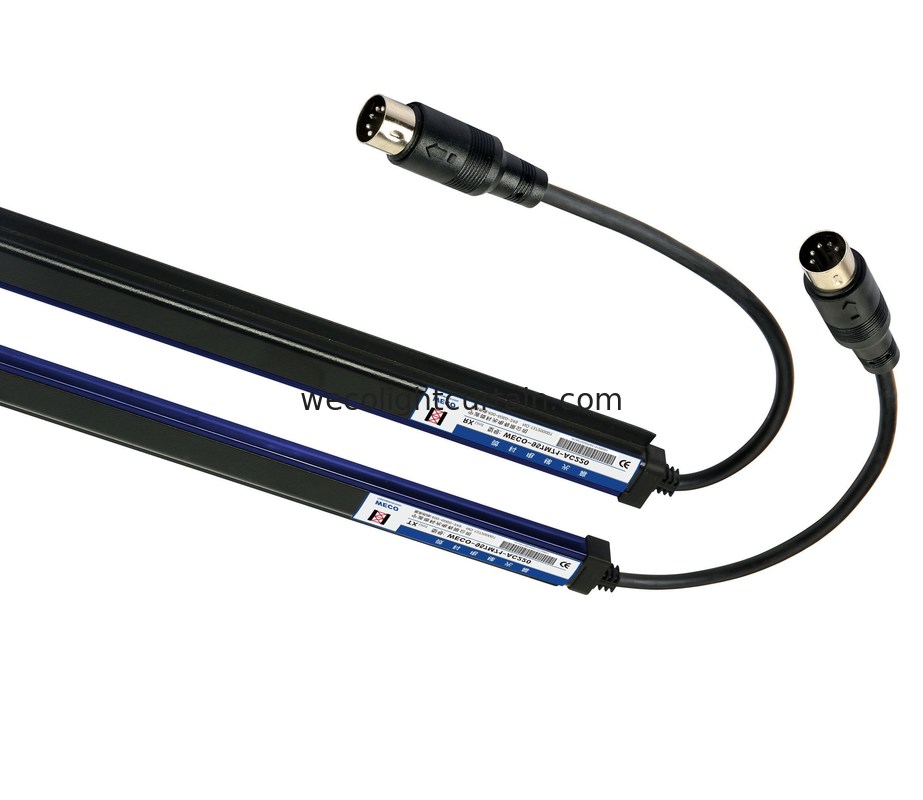

CE CSA CCC Infrared Light Curtain WECO Waterproof Lift Door Sensor AC220V
The Protection level of WECO-917/ 957 M model Lift Door Sensor is IP65. That is to say it has waterproof function. As you can see the end cap covers the aluminum profile to prevent water from being into PCB board.
|Number of infra red diodes||17diodes||32diodes||17diodes||32diodes||40diodes||48diodes|
|Response time||relay output||45ms||61ms||45ms||61ms||69ms||77ms|
|Scanning Beam||94~33 beams||154~94 beams||94~33 beams||154~94 beams||194~118 beams||234~142 beams|
|Led Interpretation||The yellow LED and red LED in receiver is on when blocked or in malfunction|
|The yellow LED in receiver is on and red LED in receiver off without blocking.|
Dimension & Installation holes
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
User Manual (1copy)
Mounting accessories (1 set)
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- Special point for this model that WECO-957M8-DC24B is often purchased by Otis.
--- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately
