Product Details:
Payment & Shipping Terms:
|
| Price: | Economic Model | Usage: | Industrial Fast Door |
|---|---|---|---|
| Voltage: | AC220V, AC110V, DC24V | Scaning Beams: | 154 Beams |
| Product Name: | High Speed Door Light Curtain | Delivery: | Courier, Air, Sea |
| Length: | 500mm 1000mm | Mounting Holes:: | Customized |

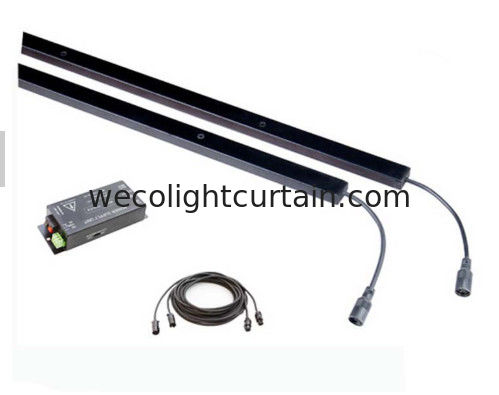

WECO 2000mm DC24V Infrared Light Curtain
introduce
Light curtains are opto-electronic devices that are used to safeguard personnel in the vicinity of moving machinery with the potential to cause harm such as presses, winders and palletisers. Light curtains can be used as an alternative to mechanical barriers and other forms of traditional machine guarding.
Features:
1. Senstitive to detect objects
2. With blanking or without blaning function optional
3. Wide detecting range
Specification
| Length | Number of Diodes | Scan Beams | Infrared Diodes Range | Detecting Range | Blanking function | Protection Level | Operation Temperature | LED Interpretation |
| 500mm | 8 diodes | 34-22 beams | 59mm | 1000-10000mm | NO | IP 54 | -20℃- + 65℃ |
1.Yellow LED and red LED in receiver is on when blocked or in malfunction
2. Yellow LED in receiver is on and red LED in receiver off without blocking |
| 500mm | 8 diodes | 8 beams | YES | |||||
| 1000mm | 16 diodes | 74-46 beams | NO | |||||
| 1000mm | 16 diodes | 16 beams | YES | |||||
| 1800mm | 29 diodes | 139-85 beams | NO | |||||
| 1800mm | 29 diodes | 29 beams | YES | |||||
| 2000mm | 32 diodes | 154-94 beams | NO | |||||
| 2000mm | 32 didoes | 32 beams | YES |
Scanning Beams
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
Shaft Components includes
Machined /Cold Drawn/ Hollow Guide Rail, Fishplate, Fasteners, Anchor Bolt, Rail Rracket etc.
·Elevator Cabin includes
Complete Elevaotr Cabin, Car Frame, Counterweight Frame and Counterweight Block,Guide Shoes, Rope Attachment etc.
·Door System includes
Mitsubishi, Fermator and Selcom Door Operator and Landing Door, Door Panel, Door Spare Parts,Safety Light Curtain/Photocell etc.
·Safetey Components includes
Safety Gear, Speed Governor, Rope Brake, Oil Buffer and Rubber Buffer etc.
·Traction System includes
Geared/Gearless Traction Machine, Pulley Sheave,Anti-Vibration Pad,Steel Wire Rope etc.
·Electrical Components inclueds
Integrated and Separated Controlling Cabinet,Yaskawa L1000A Inverter, Elevator Display,COP&LOP&HOP, Elevator Button, Flat
Traveling Cable etc.
