Product Details:
Payment & Shipping Terms:
|
Voltage: | AC220V, AC110V, DC24V | Transportation: | Courier, Air&Sea |
---|---|---|---|
Brand: | WECO, OEM | Feature: | Cedes Door Detector |
Usage: | Protect The Human Body | Beam Number: | 154 Beams, 194 Beams, 234 Beams |
High Light: | safety light curtain sensor,machine light guards |

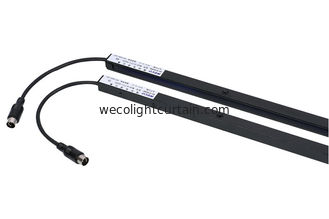

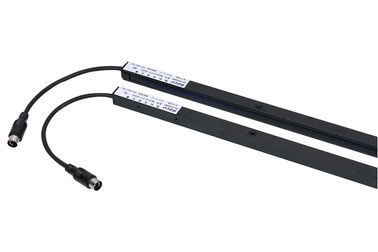

Multi Functional Infrared Light Curtain Lift Door Sensor T Profile Two Sides Installation
WECO-917/ 957T model infrared light curtain is a very special model, as it has two type installation mode, one is from in front side, the other one is from side. In this case, it will be more easier to fix the light curtain during installation.
Morever, T profile is multi functional. As all our side opening models is by T in RX.
Specification
Technical Features | 917T6 | 917T7 | 957T6 | 957T7 | 957T8 | 957T9 | |
Number of infra red diodes | 17diodes | 32diodes | 17diodes | 32diodes | 40diodes | 48diodes | |
Response time | relay output | 45ms | 61ms | 45ms | 61ms | 69ms | 77ms |
transistor output | 21ms | 37ms | 21ms | 37ms | 45ms | 53ms | |
Scanning Bema | 94~33 beams | 154~94 beams | 94~33 beams | 154~94 beams | 194~118 beams | 234~142 beams | |
Detecting Height | 20~1841mm | ||||||
Detecting range | 0~4m | ||||||
Operating Temperature | -20℃~+65℃ | ||||||
Light immunity | 1000000Lux | sunlightproof | |||||
Redundancy | NO | YES | NO | YES | NO | ||
Led Interpretation | The yellow LED and red LED in receiver is on when blocked or in malfunction | ||||||
The yellow LED in receiver is on and red LED in receiver off without blocking. |
Dimension
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes

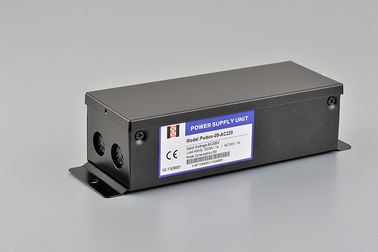

Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
What we have?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately
