|Color:||Black, Aluminum Color||Mechanical Linkage:||Customized|
banner safety curtain,
weco elevator door sensor

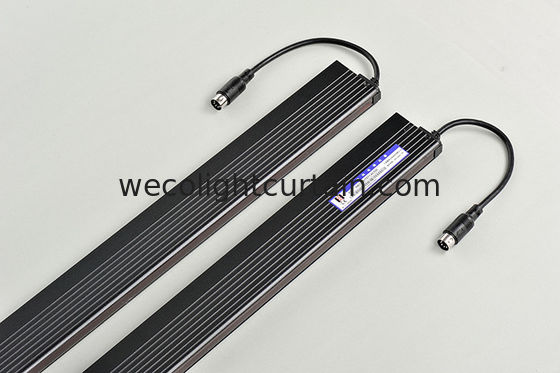

Safety 2 In 1 Elevator Door Photocell Mistubishi Type Weco Lift Products
WECO-917E Mistubishi two- in- one model elevator door photocell was was a new design type work with mechanical linkage before 2012, which perfectly substiteted our traditional safety edges through muilty infrared beams.
Now our 917E door photocell is integrated with safety edges then work with mechnical linkages to better protect passenagers or goods from being hurting during door closing.
This type elevator door photocell also has central opening and side opening two opening modes.
|Number of Infra Red Diodes||32 Diodes|
|Response Time||Relay Output||61ms|
|Scanning Beams||154~94 Beams|
|Infrared Diodes Range||59mm|
|The Mimimum Door Opening||≤20mm|
|The Maximum Door Opening||≥1800mm|
|Redundancy (one transimitter shielded after 120s detected absent)||YES|
|Light Immunity||100000 Lux||sunlightproof|
|EMC ( EN12015 EN12016)||General circuit level||safety circuit level|
1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.
2. Yellow LED in receiver on and Red LED in receiver off without block.
Dimension for side opening and central opening
WHAT WE HAVE?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 15 years focus on elevator light curtain manufacturing and trading.
--- Our poducts has been sold to more then 40 countries and areas.
--- Good and fast deliery time. As we have thousands sets light curtain in our stock.
--- We also offer mechanical linkages , please kindly mark the opening width when you ask quotation.
For side opeing model, also need to know the door sill width.
