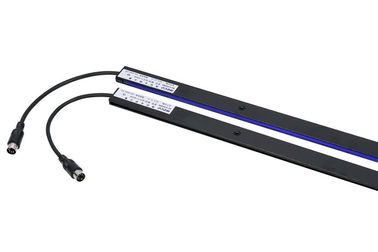

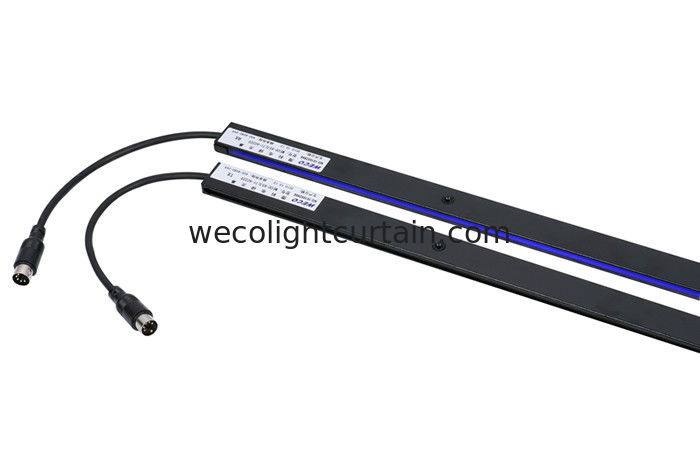

Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector

Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector
Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector

Large Image :  Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector

Product Details:

Place of Origin: CHINA
Brand Name: WECO
Certification: CE CCC
Model Number: WECO-917 / 957Q

Payment & Shipping Terms:

Minimum Order Quantity: 10SETS
Price: Negotiable
Packaging Details: 5sets in a bundles, pallet avaliable
Delivery Time: 5-8 Workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1400000SETS/Year
Detailed Product Description
Voltage: AC220V, AC110V, DC24V Cable Length: Customized
Transportation: Courier, Air&Sea Feature: WECO-957L71-AC220-F-2100mm
Light Source: Special Infrared LED Output: Relay Output/ PNP NPN Output
High Light:

elevator infrared door detector

,

machine light guards


Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector

WECO-917/ 957Q model Lift Door Sensor is the earliest model that Ningbo WECO Optoelectronics CO., LTD. developed since 1998. Also this model full height door sensor is widely used and purchased because of the price advantage and slim thickness. The clients always install this WECO-917/ 957Q  model door sensor on passenger lift and cargo lift. Giantkone, Hangzhou XO always purchase this model.


Specification



Technical Features 917Q6 917Q7 957Q6 957Q7 957QL8 957Q9
 Number of infra red diodes 17diodes 32diodes 17diodes 32diodes 40diodes 48diodes
Response time relay output 45ms 61ms 45ms 61ms 69ms 77ms
transistor output 21ms 37ms 21ms 37ms 45ms  53ms
Scanning Bema 94~33 beams 154~94 beams 94~33 beams 154~94 beams 194~118 beams 234~142 beams
Detecting Height 20~1841mm
Detecting range 0~4m
Operating Temperature -20℃~+65℃
Light immunity 1000000Lux sunlightproof
Redundancy NO YES NO YES NO
Led Interpretation The yellow LED and red LED in receiver is on when blocked or in malfunction
The yellow LED in receiver is on and red LED in receiver off without blocking.


Dimension& Installation Holes


Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector 0

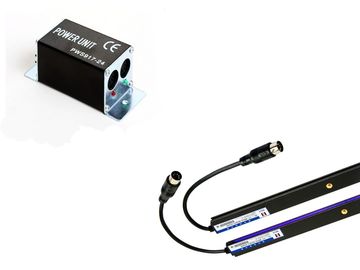

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)



Full Height WECO Infrared Light Curtain Q Model 17mm Diameter Connector 1
































































More about WECO


--- Ningbo WECO Optoelectronics CO., LTD. has more than 20  years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..

--- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately
