Central Opening WECO Door Sensor IP54 9mm Thickness V Aluminum Profile

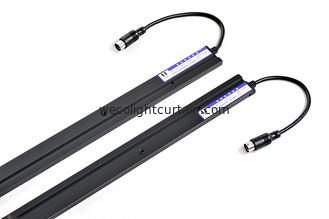

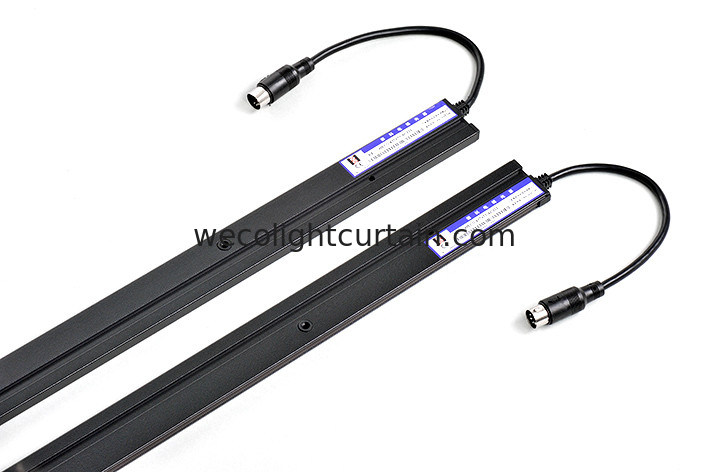

Large Image : Central Opening WECO Door Sensor IP54 9mm Thickness V Aluminum Profile

Product Details:

Place of Origin:	CHINA
Brand Name:	WECO
Certification:	CE,
Model Number:	WECO-917V

Payment & Shipping Terms:

Minimum Order Quantity:	10SETS
Price:	Negotiable
Packaging Details:	5sets in a bundle, 300sets by one pallet
Delivery Time:	8-10 Days
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1200000SETS/Year

Contact Now

Detailed Product Description

Protection Level:	IP54	Original:	China
Category:	Elevator Spare Parts, Light Curtain	Feature:	Menco Dimension
Product Name:	WECO Light Curtain	Size:	2000379mm
Highlight:	elevator sensor system , elevator photocell

Central Opening WECO Door Sensor IP54 9mm Thickness V Aluminum Profile

Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. Also this V profile full height door sensor is widely used and purchased because of slim thickness and special structure.

The clients always install this WECO-917V model door sensor on passenger lift and cargo lift.

Features

Technical Parameter	917V6	917V7
Number of Infra Red Diodes	17 Diodes	32 Diodes
Response Time	45ms relay output	61ms relay output
	21ms transistor output	37ms transistor output
Scanning Beams	99-33 Beams	154-94 Beams
Detecting Height	20-1841mm
Redundary Function	NO	YES
Operation Temperature	-20℃-+65℃
Detecting Range	0-4m
Light Immunity	100000Lux
Protection Level	IP54
EMC
EN12015	General Circuit Level
EN12016
Voice Reminder	after continuous detection for 15s, buzzer ON.
LED Interpretation	Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction.
	Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked.

Dimension

Central Opening WECO Door Sensor IP54 9mm Thickness V Aluminum Profile 0

Package

Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)

More about WECO

--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have two automatic production lines to ensure good quality and fast delivery time.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO.
--- This model is designed as per Menco' light curtain dimension.
