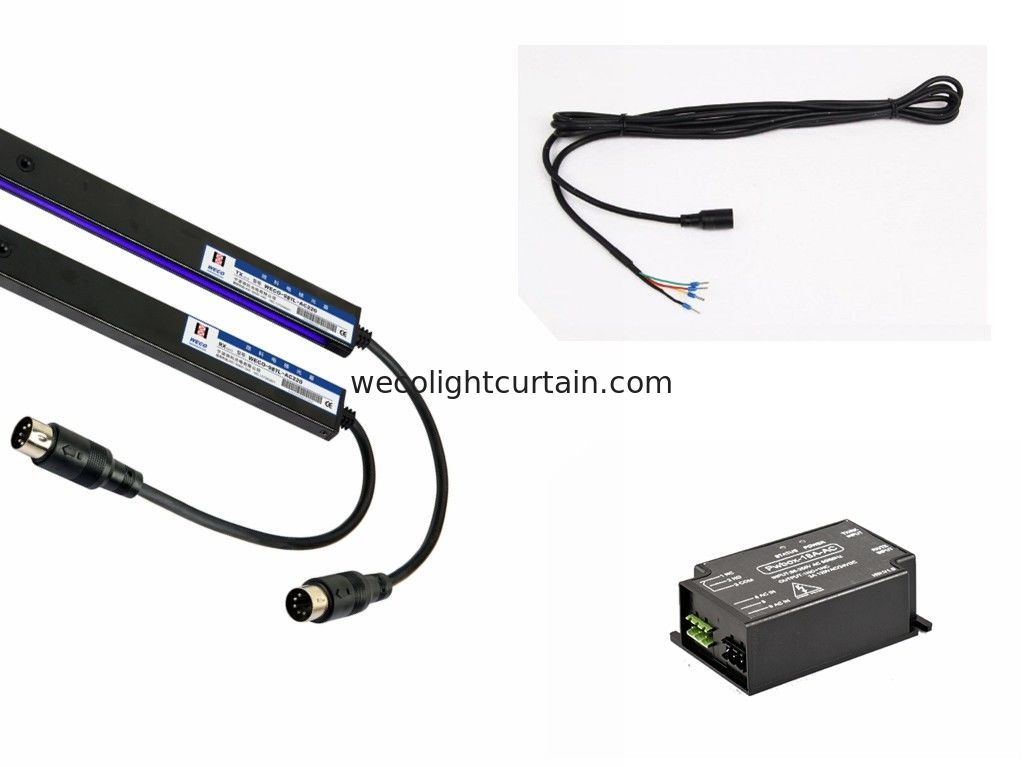

Photoelectric Weco Elevator Door Sensor With Malfunction Output Signal
EN81-20 New Euro Standard means requirements (for elevator door detector)
1. detecting height range: the lowest≤20mm, the highest≥1600mm.
2. minimum obstructions 50mm, the distance of diode sets must less than 50mm.
3. When distance of door detectors less than 20mm, it allows to be invalid.
Design of door detector (Solution)
1. range of diodes less than 47mm, the number of diodes should be at least 35 or more than 35
2. lowest detecting point:17mm
3. higest detecting point:17+47*34=1615mm. (take 35 diode sets as example)
4. detecting range is 0—4m
5. continuous detectable minimum obstructions is 50mm
|
Technical Parameter |
987L5 |
987L8 |
987L9 |
|
Number of Infra Red Diodes |
36 Diodes |
40 Diodes |
48Diodes |
|
Response Time |
65ms relay output |
69ms relay output |
77ms relay output |
|
61ms transistor output |
45ms transistor output |
53ms transistor output |
|
|
Scanning Beams |
174-106 Beams |
194-118 Beams |
234-142 Beams |
|
Detecting Height |
≤20mm |
||
|
Redundary Function |
NO |
||
|
Operation Temperature |
-20℃-+65℃ |
||
|
Detecting Range |
0-4m |
||
|
Light Immunity |
sunlight proof |
||
|
Protection Level |
IP54 |
||
|
EMC |
|||
|
EN12015 |
Safety Circuit Level |
||
|
EN12016 |
|||
|
LED Interpretation |
Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction. |
||
|
Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked. |
|||
Mounting Holes and Dimension
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)
What's more?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
