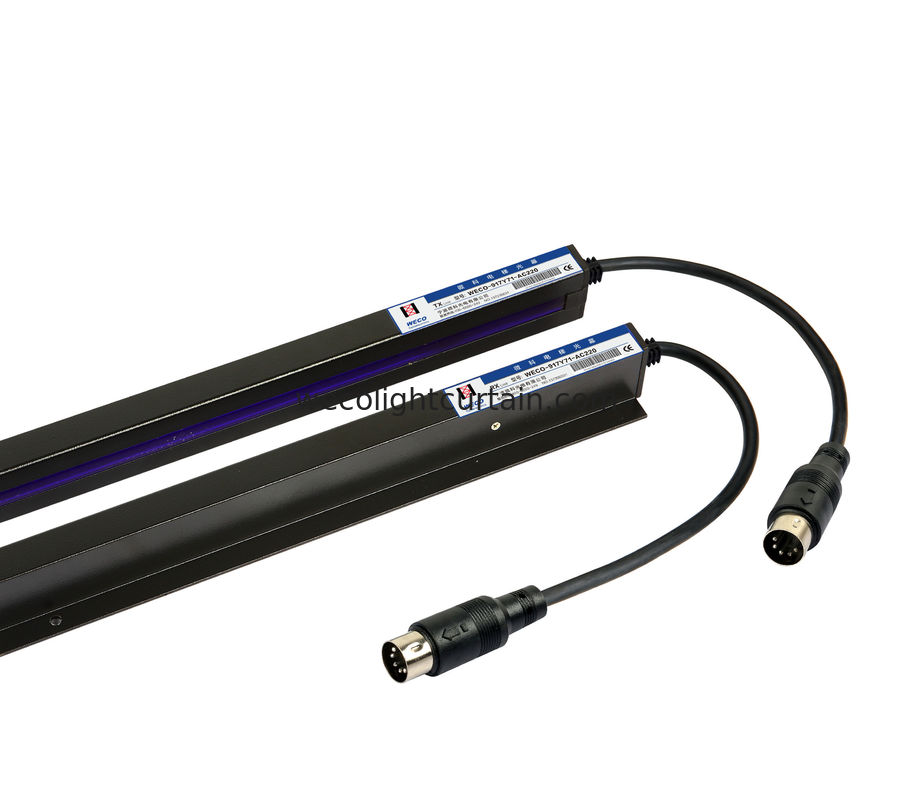

XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved

XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved
XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved

Large Image :  XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved

Product Details:

Place of Origin: CHINA
Brand Name: WECO
Certification: CE, CSA
Model Number: 957U

Payment & Shipping Terms:

Minimum Order Quantity: 10SETS
Price: Negotiable
Packaging Details: each set packed by carton tube, 5 sets in a bundle, 300Sets be a pallet
Delivery Time: 5 Workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1400000SETS/Year
Detailed Product Description
Transportation: Sea Suggested Type: Elevator Parts, Lift Spare Part
Feature: Flexible Mounting Holes Length: 2100mm
Model: WECO-957U71-AC220-F-2100mm Original: China
High Light:

weco elevator products

,

weco lift products

XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved



EN81-20 New Euro Standard means requirements (for elevator door detector)

1.detecting height range: the lowest≤20mm, the highest≥1600mm.

2.minimum obstructions 50mm, the distance of diode sets must less than 50mm.

3. When distance of door detectors less than 20mm, it allows to be invalid.



Design of door detector (Solution)

1.range of diodes less than 47mm, the number of diodes should be at least 35 or more than 35

2.lowest detecting point:17mm

3.higest detecting point:17+47*34=1615mm. (take 35 diode sets as example)

4.detecting range is 0—4m

5.continuous detectable minimum obstructions is 50mm



About WECO LIght Curtain, we have three series, 917, 957 and 9878. Here we would like to introduct WECO-957U71-AC220-F-2100mm model light curtain is suitable for XO elevator.



Technical Parameter

957U7

987U5

987U8

987U9

Number of Infra Red Diodes

32diodes

36 Diodes

 40 Diodes

48Diodes

Response Time

61ms relay output

65ms relay output

69ms relay output

77ms relay output

37ms transistor output

61ms transistor output

45ms transistor output

53ms transistor output

Scanning Beams

154-94beams

174-106 Beams

 194-118 Beams

234-142 Beams

Detecting Height

≤20mm

Redundary Function

YES

NO

Operation Temperature

 -20℃-+65℃

Detecting Range

0-4m

Light Immunity

sunlight proof

Protection Level

 IP54

 EMC

EN12015

Safety Circuit Level

EN12016

LED Interpretation

Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction.

Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked.

























































Mounting Holes and Dimension



                                 XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved 0XO Elevator WECO Light Curtain U Profile 154 Beams 2100MM CSA Approved 1







































































Package

Every piece packed in tube,five tubes in a bundle;

Each tube includes:

Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)





Shipping



1) By Express (3-7 working days), suitable for Small Quantity.



2) By Sea (15-30 days), suitable for regular Mass Production.



3) By Air (4-5 days), from Airport to Airport, suitable for Urgent Time.



What WECO Have?
--- Ningbo WECO Optoelectronics CO., LTD. has more than20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell for quick delivery.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..

--- Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Korea, Thailand, Indonesia  and many other countries.

--- Sophisticated and professional logistic agent.

--- After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
