|Usage:||Passenger / Cargo Elevator||Voltage:||AC220V, AC110V, DC24V|
|Material:||Aluminum Body||Catagory:||Elevator Spare Parts, Light Curtain|
multi beam sensor,
infrared door sensor

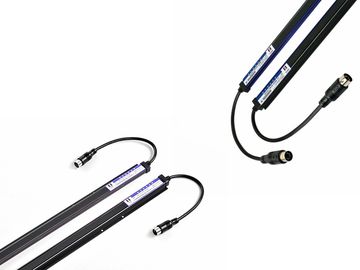

Waterproof Safety Elevator Door Sensor Light Curtain Sensor Aluminum Body
WECO-917M model elevator door sensor is a higher protection level model in WECO light curtain products, which can achieve IP65 protection level. Because of waterproof function, it is much more suitable for outdoor application usage.
Morever, the mounting hole of WECO-917M is customized on site.
|Number of infra red diodes||17diodes||32diodes||17diodes||32diodes||40diodes||48diodes|
|Response time||relay output||45ms||61ms||45ms||61ms||69ms||77ms|
|Scanning Bema||94~33 beams||154~94 beams||94~33 beams||154~94 beams||194~118 beams||234~142 beams|
|Led Interpretation||The yellow LED and red LED in receiver is on when blocked or in malfunction|
|The yellow LED in receiver is on and red LED in receiver off without blocking.|
Dimension and Mounting holes
Every piece packed in tube,five tubes in a bundle;
Each tube includes

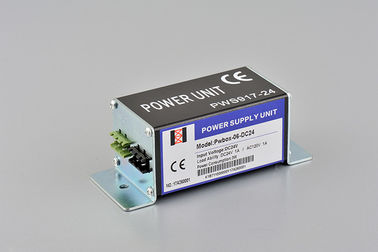

Power supply control unit (1pieces)
Durable flexible cable (2cables)
User Manual (1copy)
Mounting accessories (1 set)
More about WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- Our products have been exported to Germany, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, India and many other countries.
