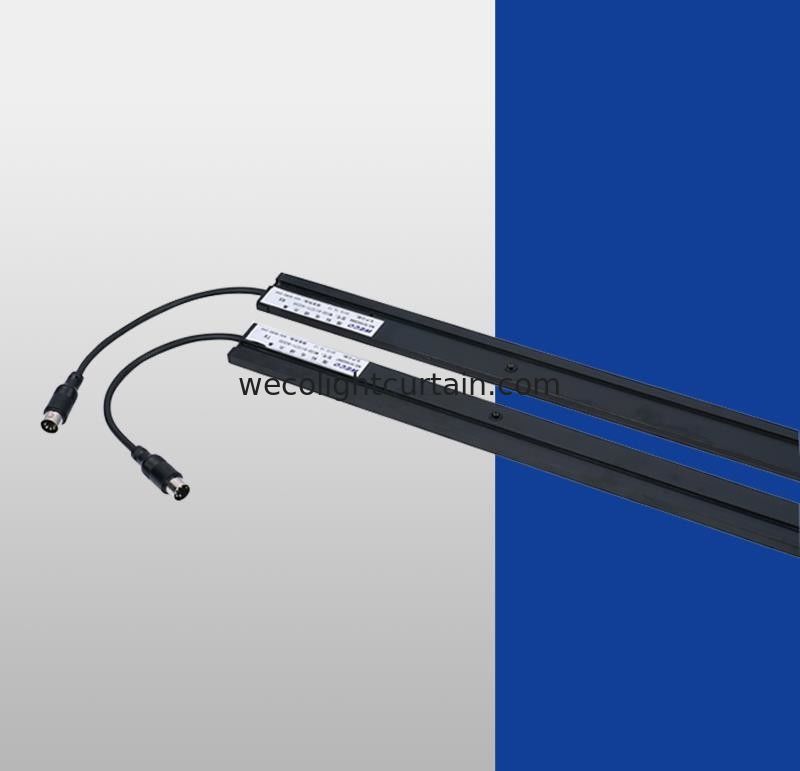

Passenger Lift Light Curtain Safety Light Barrier Sensor 917N AC220V DC24V

Passenger Lift Light Curtain Safety Light Barrier Sensor 917N AC220V DC24V
Passenger Lift Light Curtain Safety Light Barrier Sensor 917N AC220V DC24V

Large Image :  Passenger Lift Light Curtain Safety Light Barrier Sensor 917N AC220V DC24V

Product Details:

Place of Origin: China
Brand Name: WECO
Certification: CE, CCC, CSA
Model Number: WECO-917N

Payment & Shipping Terms:

Minimum Order Quantity: 10SETS
Price: Negotiable
Packaging Details: 5sets in a bundles, pallet avaliable
Delivery Time: 5-10 workdays
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 1200000SETS/Year
Detailed Product Description
Applicable: Elevator, Elevator Parts Feature: WECO Original & OEM
Dimension: 2000*36*11mm Keywords: WECO-917N71-DC24V Light Curtain
Cable: 3.5m* 2 Connetion Cable Weight: 4KGS
High Light:

light curtain safety system

,

light curtains machine guarding

Passenger Lift Light Curtain Safety Light Barrier Sensor 917N AC220V DC24V

Ningbo WECO Optoelectronics CO., LTD. developed elevator light curtain since 1998. And in 2004 year, WECO brand is already well known in China market. Then we began to deveop overseas market since 2008, 917N model was as a new profile and won a good reputation in overseas market.

WECO light curtain has 917, 957 and 987 three series elevator light curtain, which all is suitable for being installed on passenager lift or cargo lift.

Specifications


Technical Features917N6917N7
Number of Infra Red Diodes17 Diodes32Diodes
Response TimeRelay Output45ms61ms
Transistor Output21ms37ms
Scanning Beams94~33 Beams154~94 Beams
Infrared Diodes Range117.5mm58.8mm
The Mimimum Door Opening ≤20mm
The Maximum Door Opening≥1800mm
Redundancy (one transimitter shielded after 120s detected absent)NOyes
Detecting Range0-4000mm
Operation Temperature-20℃~+65℃
Light Immunity100000 Lux
Protection LevelIP54
EMC ( EN12015 EN12016)General circuit level
LED Interpretation

1. Yellow LED and Red LED in Receiver on when blocked or in malfunction.
2. Yellow LED in receiver on and Red LED in receiver off without block.


Sectional Dimension

Passenger Lift Light Curtain Safety Light Barrier Sensor 917N AC220V DC24V 0


Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)



WHAT WE HAVE?

--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years focus on elevator light curtain manufacturing and trading.

--- Our poducts has been sold to more then 40 countries and areas.

--- Good and fast deliery time. As we have thousands sets light curtain in our stock.

--- This model we exported to Vietnam market.
